EPD Touch Development Kit (EXT3-Touch)

The Touch Expansion Board for EXT3 (EXT3-Touch) opens a new dimension for EPDs. Instead of being passive, they can now act as input devices for any interactive interface, like Human Machine Interface (HMI) and thermostat. This is also a perfect configuration for ultra-low power IoT remote controls.

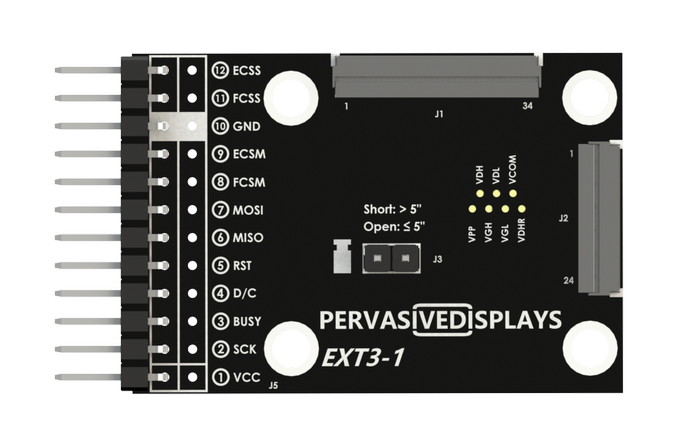

Note: this EXT3-Touch board needs to work with EXT3-1 board which is included in this kit.

Features:

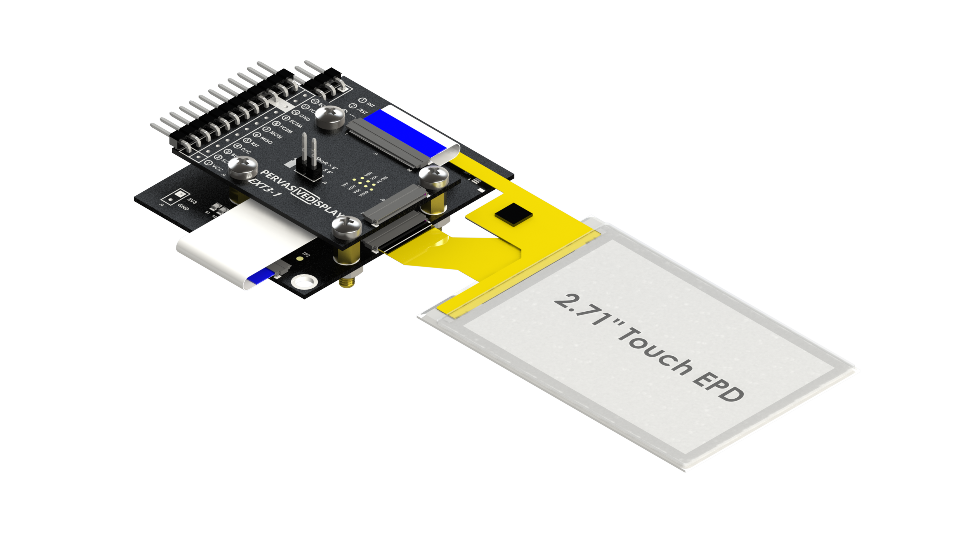

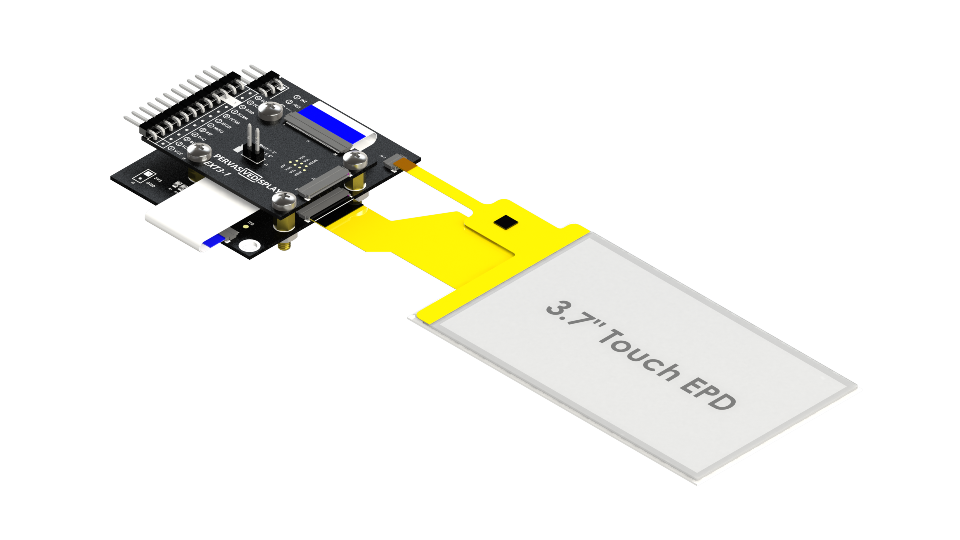

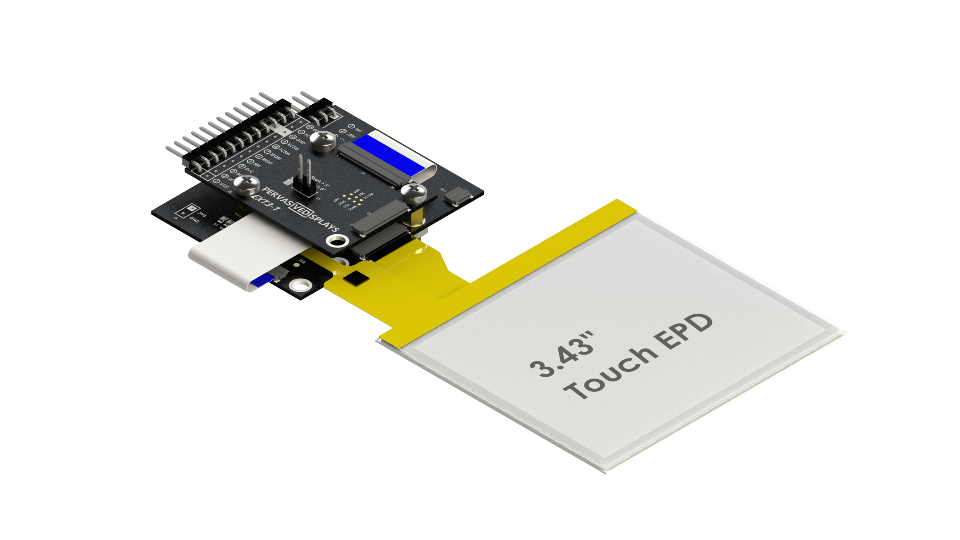

• 3 ZIF connectors specifically placed for the 3.70″ and 3.4″ (,2.71″ and future sizes) of Touch EPDs made by Pervasive Displays
• A 34-way flat cable (FFC) connects the EXT3-1 Touch board to the EXT3-1 board could be placed on top
• Exposes 4 pins for the touch controller from your EVK
• With this kit, there are cooper pillars, screws and nuts set to fix these two boards
• Driver firmware is available for each EPD and touch controller as open-source license-free examples
• The Pervasive Displays Library Suite (PDLS) fully supports this kit and brings a complete set of GUI elements

Instructions

Find the detailed introduction of EXT3-Touch kit here.

Note: the 3.70″ Touch EPD is excluded in this kit. You will need to order it from here.
